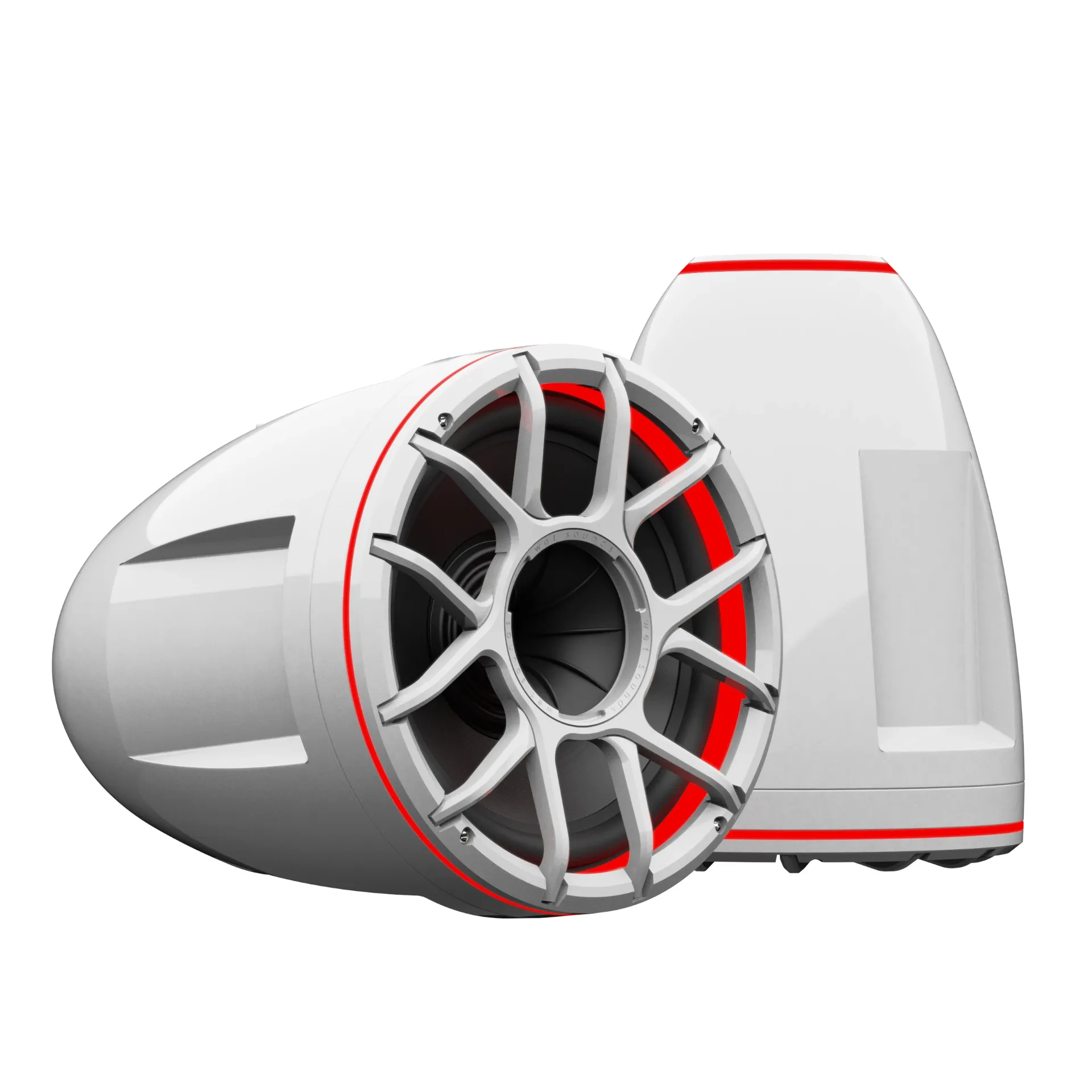

WE-REV 10 HD-W

The Revolution-HD series adds an even higher level of high-definition performance to the marine audio industry, bringing unprecedented volume and sound quality to a tower speaker design never achieved before. Built upon the success of the Revolution Series, Wet Sounds™ took a ground up approach to develop a new REV TEC™ driver using proprietary materials to provide amazing mid-bass with a smooth yet powerful high frequency response. The REV HD Horn Loaded Compression Driver (HLCD) Tower Speakers have been optimized with audio clarity and high performance at their core. They both feature a Pro-Axial HLCD driver paired with an advanced polymer composite cone for audio clarity and durability. The thermoformed Santoprene™ rubber surround, matched with the injection molded reinforced enclosure, ensures optimal listening in any marine setting. The integrated RGB lighting rings and badge add a nice touch of style, perfect for evening listening on the water or trails. The REV HD Series feature multiple grille options, several mounting choices, and are available in white or black to fit your style and taste.

Features

• Wet Sounds 10” REV-TEC™ HD Driver
• Integrated Front & Rear RGB LED Rings
• Stainless Steel Hardware
• Sold in Pairs (Grilles & Clamps Sold Separately)
• 3 Grille Styles Available in Black or White
• Utilizing TC3 Clamps (Swivel) & New X-Mount (ADP REV HD X) Coming Soon
• Pro-Axial™ REV TEC™ HD Driver with Thermoformed Santoprene™ Rubber Surround Driver
• Coaxially Mounted Titanium Diaphragm High Output Horn Loaded Compression Driver

Available in 3 Grille Styles:

• XZ-Black
• XW-Black
• XS-Black

Stainless Steel Clamp Styles Available:

• Swivel Clamp - Fits Tube Diameter 1 7/8" up to 3"
• Mini Swivel Clamp - Fits Tube Diameter 1" up to 1 7/8"
• Swivel Surface Clamp (SXM) - For Surface Mounting, Allows Swivel and Removability of Speaker
• Fixed Clamp - Fits Tube Diameter 1 7/8" up to 3"
• Mini Fixed Clamp - Fits Tube Diameter 1" up to 1 7/8"
• Fixed Clamp SA (Silver Aluminum) - Fits Tube Diameter 1 7/8" up to 3"
• REV HD X-Mount (Surface Mount) - For Surface Mounting, Available in Black or White Powdercoat Finish

REV HD User Manual

U.S. Utility Patent No.: US 8,568,162 Mountable Loudspeaker Assemblies & Clamps

RMS (Watts):



300W

Peak Power (Watts):



600W

Impedance:



4Ω

Frequency Response:



66Hz - 20kHz

Sensitivity @ 1W/m:



90.9dB @ 1W/m

Hang Height:



12.42" (315.46 mm)

Hang Weight:



14.33 lbs (6.49kg)

Width:



10.83" (275.08 mm)

Depth:



13.16" (334.26 mm)
