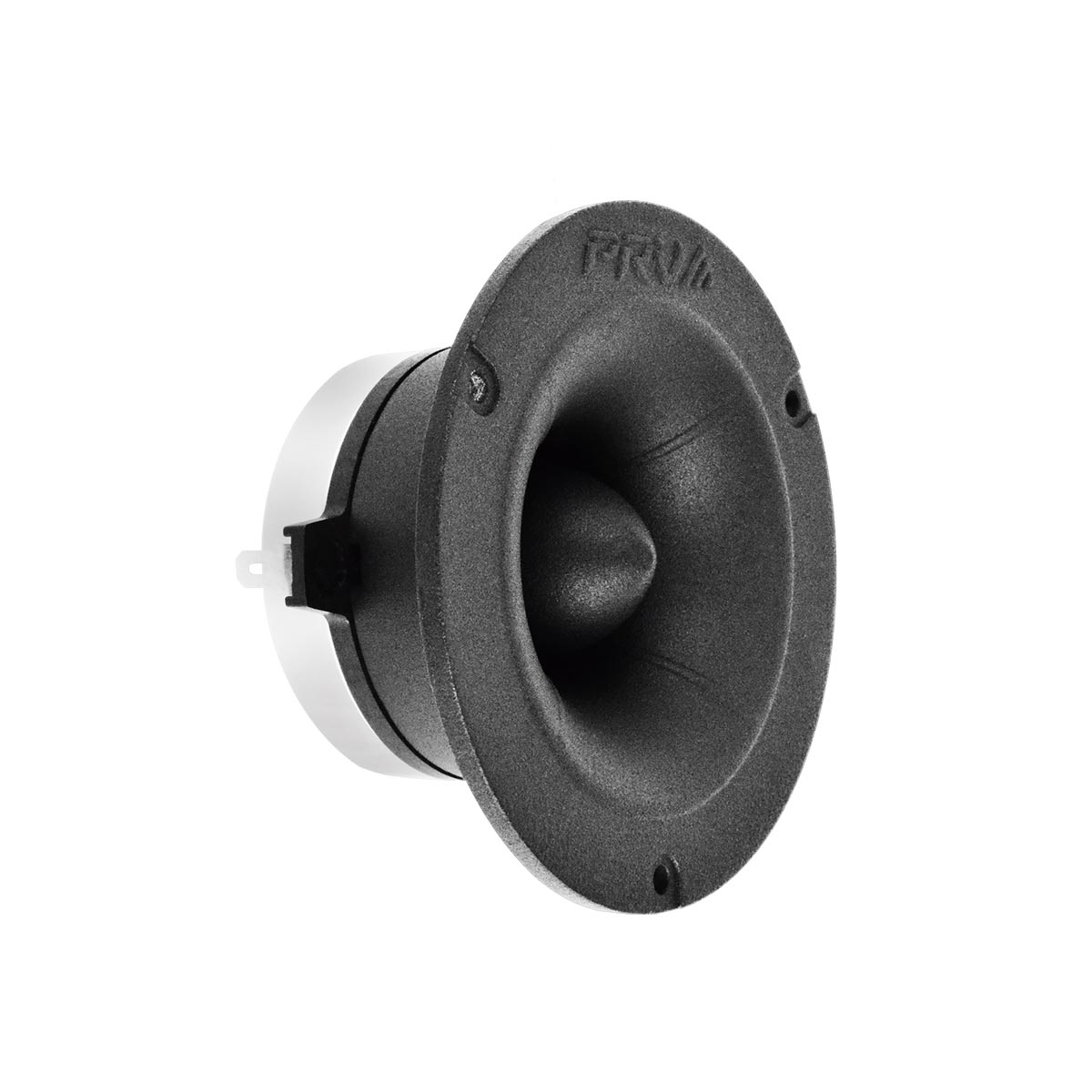

PRO AUDIO SUPER TWEETER

SKU: PV-TW500MY-ND

Brand part number: TW500MY-ND

Brand: PRV Audio

Be the first to review this product

Unit of Measure: EACH

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response. The Mylar diaphragm is light, thin and durable for long play applications.

TW500My-Nd is designed with cast aluminum frame to ensure a quality sound and long lasting play in most any environment. Replacement Diaphragms available.

Type: Super Tweeter
Nominal Impedance: 8 Ohms
Rated AES Power Handling (RMS): 75 Watts
Program Power: 150 Watts
Voice Coil Diameter: 1.25″

Technical Details

GENERAL SPECIFICATIONS

Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	75 Watts
Program Power	150 Watts
Sensitivity 2.83V at 1m	108 dB
Recommended Hi Pass Crossover For Full Power Handling	4000 Hz 12db Per Octave Crossover
Frequency Response at -10dB	3,500 – 19,000 Hz
Voice Coil Diameter	1.25”(32 mm)
Voice Coil Wire	Aluminum
Voice Coil Former Material	Kapton
Diaphragm Material	Mylar
Flux Density	1.30 T
Magnet Material	Neodymium

EXTRA INFO

Overall Depth	1.77” (45 mm)
Mounting Depth	1.61” (41 mm)
Overall Diameter	4.0” (100 mm)
Cutout Diameter	3.19” (81 mm)
Net Weight	1.25 lbs (0.56 kg)
Shipping Weight	1.33 lbs (0.60 kg)
Carton Dimensions W x L x H	4.1” x 4.1” x 2.1” (105 x 105 x 55 mm)

PRV AUDIO TW500My-Nd DATASHEET Download

Repair Parts

Replacement Diaphragm for TW500My-Nd

RPTW500My-Nd

Overview
Specifications

Features

This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response. The Mylar diaphragm is light, thin and durable for long play applications.

TW500My-Nd is designed with cast aluminum frame to ensure a quality sound and long lasting play in most any environment. Replacement Diaphragms available.

Type: Super Tweeter
Nominal Impedance: 8 Ohms
Rated AES Power Handling (RMS): 75 Watts
Program Power: 150 Watts
Voice Coil Diameter: 1.25″

Technical Details

GENERAL SPECIFICATIONS

Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	75 Watts
Program Power	150 Watts
Sensitivity 2.83V at 1m	108 dB
Recommended Hi Pass Crossover For Full Power Handling	4000 Hz 12db Per Octave Crossover
Frequency Response at -10dB	3,500 – 19,000 Hz
Voice Coil Diameter	1.25”(32 mm)
Voice Coil Wire	Aluminum
Voice Coil Former Material	Kapton
Diaphragm Material	Mylar
Flux Density	1.30 T
Magnet Material	Neodymium

EXTRA INFO

Overall Depth	1.77” (45 mm)
Mounting Depth	1.61” (41 mm)
Overall Diameter	4.0” (100 mm)
Cutout Diameter	3.19” (81 mm)
Net Weight	1.25 lbs (0.56 kg)
Shipping Weight	1.33 lbs (0.60 kg)
Carton Dimensions W x L x H	4.1” x 4.1” x 2.1” (105 x 105 x 55 mm)

PRV AUDIO TW500My-Nd DATASHEET Download

Repair Parts

Replacement Diaphragm for TW500My-Nd

RPTW500My-Nd
