2" EXIT HIGH FREQUENCY COMPRESSION DRIVER
SKU: PV-D3220TI-ND
Brand part number: D3220TI-ND
Brand: PRV Audio
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Features

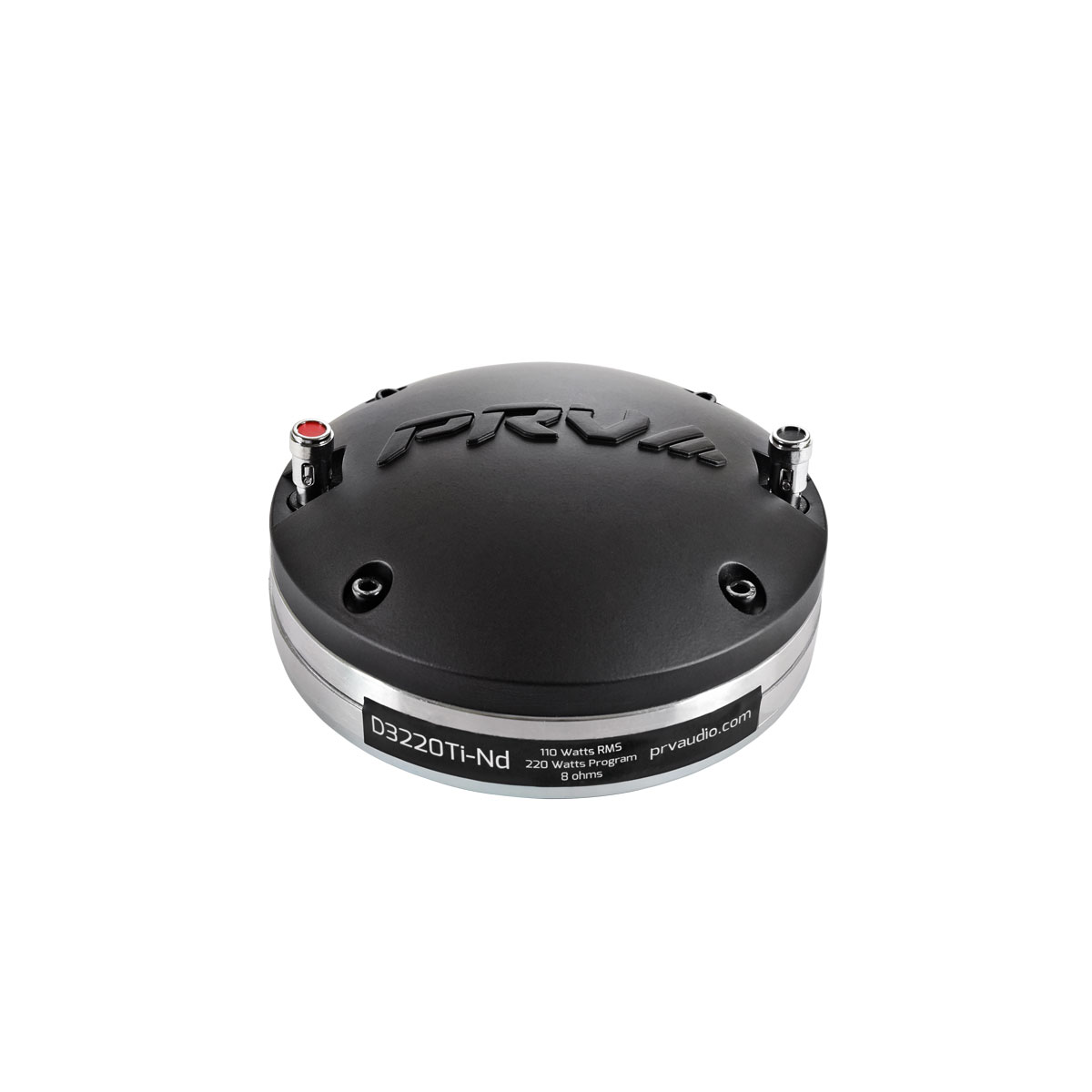

    The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2″ exit supported by a 3″ voice coil allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications. The Neodymium magnet assembly reduces the weight to just 4.89lbs.

    The D3220Ti-Nd is designed to ensure a quality sound and long lasting play in your large environment applications.

    • Throat Diameter: 2″
    • Type: Bolt-On
    • Nominal Impedance: 8 Ohms
    • Rated AES Power Handling (RMS): 110 Watts
    • Program Power: 220 Watts

    Technical Details



    GENERAL SPECIFICATIONS

    Exit Throat Diameter2” (50 mm)
    Nominal impedance8 Ohms
    Rated AES Power Handling (RMS)110 Watts
    Program Power220Watts
    Sensitivity 2.83V at 1m110 dB
    Recommended Hi Pass Crossover** **For Full Power Handling1600 Hz** **12db Per Octave Crossover
    Frequency Response at -10dB1,600 – 19,000 Hz
    Voice Coil Diameter3”(76.2 mm)
    Voice Coil WireCopper
    Voice Coil Former MaterialKapton
    Diaphragm MaterialTitanium
    Flux Density1.80 T
    Magnet MaterialNeodymium


    EXTRA INFO

    Overall Diameter4.88” (124 mm)
    Overall Depth2.21” (56 mm)
    Mounting Bolt CircleM6 x 4 4” (101.6 mm)
    Net Weight 5.00 lbs (2.27 kg)
    Shipping Weight5.27 lbs (2.39 kg)
    Carton Dimensions W x L x H5.71” x 5.71” x 3.35” (145 x 145 x 85 mm)


    Repair Parts



    Replacement Diaphragm for D3220Ti-Nd

    • RPD3220Ti---Front-View

      RPD3220Ti

    Features



    The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2″ exit supported by a 3″ voice coil allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications. The Neodymium magnet assembly reduces the weight to just 4.89lbs.

    The D3220Ti-Nd is designed to ensure a quality sound and long lasting play in your large environment applications.

    • Throat Diameter: 2″
    • Type: Bolt-On
    • Nominal Impedance: 8 Ohms
    • Rated AES Power Handling (RMS): 110 Watts
    • Program Power: 220 Watts

    Technical Details



    GENERAL SPECIFICATIONS

    Exit Throat Diameter2” (50 mm)
    Nominal impedance8 Ohms
    Rated AES Power Handling (RMS)110 Watts
    Program Power220Watts
    Sensitivity 2.83V at 1m110 dB
    Recommended Hi Pass Crossover** **For Full Power Handling1600 Hz** **12db Per Octave Crossover
    Frequency Response at -10dB1,600 – 19,000 Hz
    Voice Coil Diameter3”(76.2 mm)
    Voice Coil WireCopper
    Voice Coil Former MaterialKapton
    Diaphragm MaterialTitanium
    Flux Density1.80 T
    Magnet MaterialNeodymium


    EXTRA INFO

    Overall Diameter4.88” (124 mm)
    Overall Depth2.21” (56 mm)
    Mounting Bolt CircleM6 x 4 4” (101.6 mm)
    Net Weight 5.00 lbs (2.27 kg)
    Shipping Weight5.27 lbs (2.39 kg)
    Carton Dimensions W x L x H5.71” x 5.71” x 3.35” (145 x 145 x 85 mm)


    Repair Parts



    Replacement Diaphragm for D3220Ti-Nd

    • RPD3220Ti---Front-View

      RPD3220Ti
