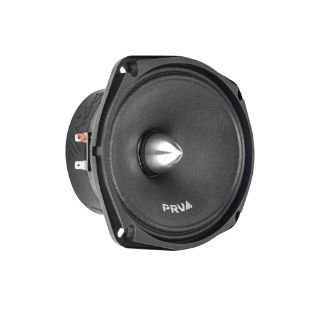

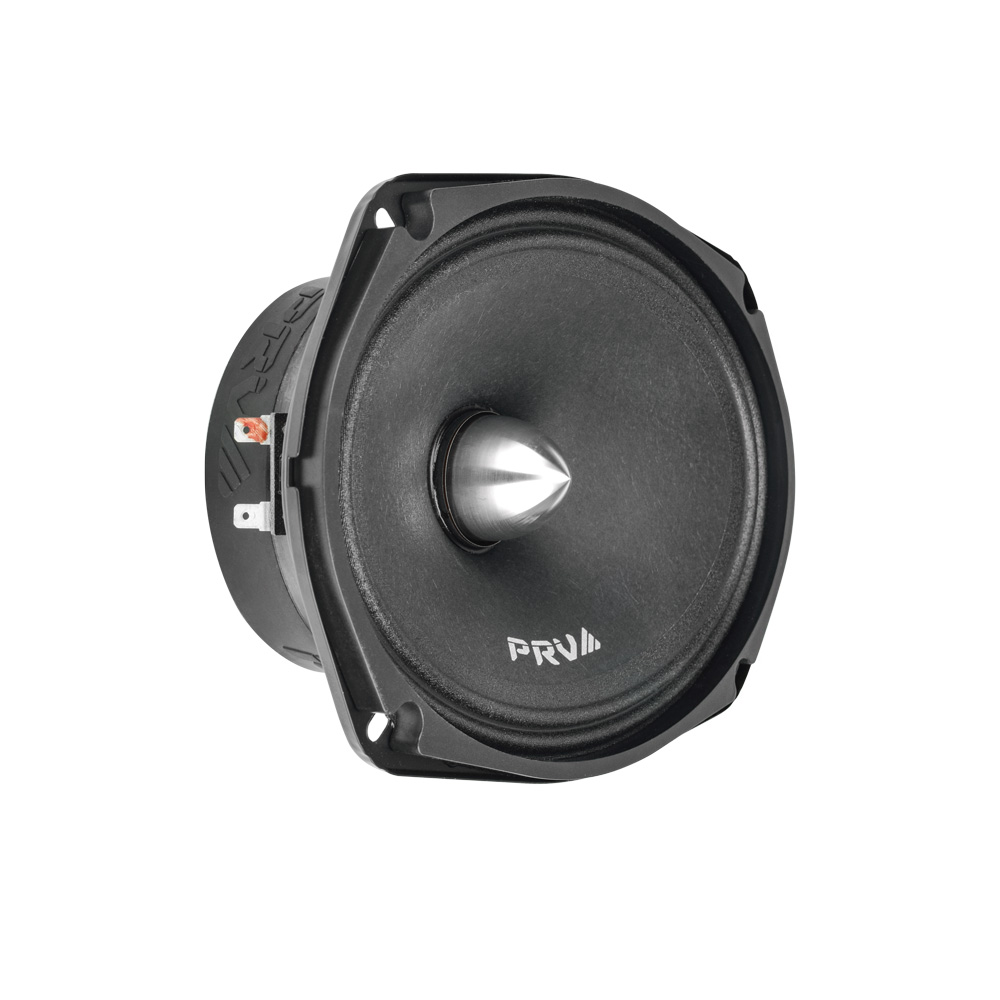

6X9" MID RANGE BULLET LOUDSPEAKER
SKU: PV-69MR500-4 BULLET
Brand part number: 69MR500-4 BULLET
Brand: PRV Audio
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Features



    The MR BULLET was conceived with one goal in mind: High-Performance!

    Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels®!! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door or rear deck.

    8MR5000-NDY-V2---Highlight---4-and-8-Ohms
    • Built to Perform at Wide Frequency Range: 150 – 12,500 Hz
    • Highest Quality Speaker with bullet design available
    • High efficiency: 96 dB guarantees High Output Levels
    • Handles 500 Watts – Endurance at Loudest Volumes
    • Vented Air pole piece for heat dissipation
    • Center phase plug for even sound distribution
    • 4 Ohms Impedance
    • Also available in 6.5″- 6MR400-4 BULLET  and 8″- 8MR500-4 BULLET

    The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.

    A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!


    6MR250B-4 SLIM

    The suspension design of this mid range features a single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

    Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.


    Built to perform and able to handle 500 watts of continuous power, this mid range is the perfect option to replace that old 2-way or 3-way coaxial speakers. Engineered and designed to transform a stock system into a concert level, ideal for audiophiles seeking tremendous output without radical modifications.

    Technical Details



    GENERAL SPECIFICATIONS

    Nominal Diameter6×9″ (152 x 228 mm)
    Nominal impedance4 Ohm
    Nominal Power Handling*250 Watts
    Continuous Program Power (RMS)**500 Watts
    Max Peak Power***1000 Watts
    Sensitivity 2.00V at 1m96 dB
    Recommended Hi Pass Crossover For Full Power Handling145 Hz 12db Per Octave Crossover
    Frequency Response150 – 12,500 Hz
    Voice Coil Diameter1.5″ (38 mm)
    Voice Coil WireCCAW
    Voice Coil Winding Depth9.5 mm
    Former MaterialKapton
    Magnetic Gap Depth6.0 mm
    Frame MaterialStamped Steel
    *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

    THIELE-SMALL PARAMETERS

    Equivalent VolumeVas5.21 l
    Excursion(mathematical)***Xmax3.25 mm
    Free Air ResonanceFs148.9  Hz
    Mechanical FactorQms16.80
    Electrical FactorQes1.20
    Total FactorQts1.12
    Cone AreaSd216 cm²
    Mechanical MassMms13.11 g
    Bl FactorBl5.86 Tm
    Dc ResistanceRe3.3 Ohms
    InductanceLe0.130 mH at 1 kHz
    Mechanical Mass Without AirMmd9.31 g
    Mechanical ComplianceCms0.080 mm/N

    ***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


    EXTRA INFO

    Overall Diameter6.43″ x 9.29′ (163.5 x 236 mm)
    Front Mount Baffle Cutout5.78″ x 8.60″ (150 x 218.5 mm)
    Mounting Depth3.48″ (88.5 mm)
    Overall Depth3.85″ (98 mm)
    Net Weight4.4 Lbs (2.00 kg) unit
    Shipping Weight4.62 Lbs (2.10 kg)
    Carton Dimensions W x L x H8.66″ x 7.48″ x 4.33″ (220 x 190 x 110 mm)
