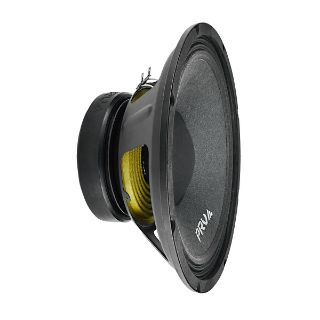

12" PRO AUDIO WOOFER
SKU: PV-12W750A
Brand part number: 12W750A
Brand: PRV Audio
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Features



    Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That’s why PRV Audio’s Alto Series 12″ 12W750A was painstakingly voiced to create a natural, smooth sound while remaining dynamic.

    You’ll find that the 12W750A works remarkably well in vented and sealed cabinet, as a woofer in two-way speakers or midrange in three-way systems, and even shines when used as a bass guitar speaker. Upgrade your speakers to the Alto Series today and find out why PRV Audio is one of the fastest growing speaker brands today!


    • Nominal Impedance: 8 Ohms
    • Rated AES Power Handling (RMS): 375 Watts
    • Program Power: 750 Watts
    • Sensitivity (1W/1m): 97 dB
    • Voice Coil Diameter: 2.5″


    Technical Details



    GENERAL SPECIFICATIONS

    Nominal Diameter12″ (305 mm)
    Nominal impedance8 Ohms
    Rated AES Power Handling (RMS)375 Watts
    Program Power750 Watts
    Sensitivity 2.83V at 1m97 dB
    Recommended Hi Pass Crossover**
    **For Full Power Handling
    200 Hz**
    **12db Per Octave Crossover
    Frequency Response at -10dB60 – 5,500 Hz
    Voice Coil Diameter2.5″ (65.5 mm)
    Voice Coil WireCCAW
    Voice Coil Winding Depth11.5 mm
    Former MaterialKapton
    Magnetic Gap Depth8.5 mm
    Frame MaterialStamped Steel




    THIELE-SMALL PARAMETERS

    Equivalent VolumeVas81.00 l
    Excursion (mathematical)***Xmax3.62 mm
    Free Air ResonanceFs59.87 Hz
    Mechanical FactorQms17.45
    Electrical FactorQes0.44
    Total FactorQts0.43
    Cone AreaSd585 cm²
    Mechanical MassMms41.72 g
    Bl FactorBl14.29 Tm
    Dc ResistanceRe5.8 Ohms
    InductanceLe0.71 mH at 1 kHz
    Mechanical Mass Without AirMmd33.71 g
    Mechanical ComplianceCms0.169 mm/N

    ***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


    EXTRA INFO

    Overall Diameter12.20” (310 mm)
    Front Mount Baffle Cutout11.06” ( 281 mm)
    Mounting Depth5.12” (130 mm)
    Overall Depth5.47” (139 mm)
    Net Weight10.85 Lbs (4.92 kg)
    Shipping Weight11.94 Lbs (5.41 kg)
    Carton Dimensions W x L x H13.19” x 13.19” x 6.69”
    (335 x 335 x 170 mm)



    Repair Parts



    Recone Kit for 12W750A Loudspeakers



    • Black Glue

      Rubber Cement Speaker Glue

    • RK12W750A

    Features



    Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That’s why PRV Audio’s Alto Series 12″ 12W750A was painstakingly voiced to create a natural, smooth sound while remaining dynamic.

    You’ll find that the 12W750A works remarkably well in vented and sealed cabinet, as a woofer in two-way speakers or midrange in three-way systems, and even shines when used as a bass guitar speaker. Upgrade your speakers to the Alto Series today and find out why PRV Audio is one of the fastest growing speaker brands today!


    • Nominal Impedance: 8 Ohms
    • Rated AES Power Handling (RMS): 375 Watts
    • Program Power: 750 Watts
    • Sensitivity (1W/1m): 97 dB
    • Voice Coil Diameter: 2.5″


    Technical Details



    GENERAL SPECIFICATIONS

    Nominal Diameter12″ (305 mm)
    Nominal impedance8 Ohms
    Rated AES Power Handling (RMS)375 Watts
    Program Power750 Watts
    Sensitivity 2.83V at 1m97 dB
    Recommended Hi Pass Crossover**
    **For Full Power Handling
    200 Hz**
    **12db Per Octave Crossover
    Frequency Response at -10dB60 – 5,500 Hz
    Voice Coil Diameter2.5″ (65.5 mm)
    Voice Coil WireCCAW
    Voice Coil Winding Depth11.5 mm
    Former MaterialKapton
    Magnetic Gap Depth8.5 mm
    Frame MaterialStamped Steel




    THIELE-SMALL PARAMETERS

    Equivalent VolumeVas81.00 l
    Excursion (mathematical)***Xmax3.62 mm
    Free Air ResonanceFs59.87 Hz
    Mechanical FactorQms17.45
    Electrical FactorQes0.44
    Total FactorQts0.43
    Cone AreaSd585 cm²
    Mechanical MassMms41.72 g
    Bl FactorBl14.29 Tm
    Dc ResistanceRe5.8 Ohms
    InductanceLe0.71 mH at 1 kHz
    Mechanical Mass Without AirMmd33.71 g
    Mechanical ComplianceCms0.169 mm/N

    ***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


    EXTRA INFO

    Overall Diameter12.20” (310 mm)
    Front Mount Baffle Cutout11.06” ( 281 mm)
    Mounting Depth5.12” (130 mm)
    Overall Depth5.47” (139 mm)
    Net Weight10.85 Lbs (4.92 kg)
    Shipping Weight11.94 Lbs (5.41 kg)
    Carton Dimensions W x L x H13.19” x 13.19” x 6.69”
    (335 x 335 x 170 mm)



    Repair Parts



    Recone Kit for 12W750A Loudspeakers



    • Black Glue

      Rubber Cement Speaker Glue

    • RK12W750A

    Products specifications
    WarrantyNONE
    Master Pack4
    Unit of MeasureEACH
    FF Level100
    Products specifications
    WarrantyNONE
    Master Pack4
    Unit of MeasureEACH
    FF Level100
