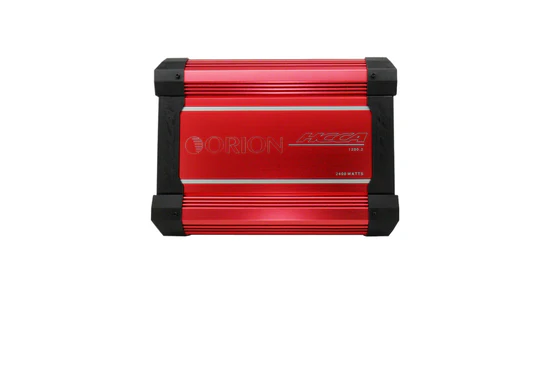

ORION HCCA1200.2 HCCA Series 1200W RMS 2-Channel Class-AB Amplifier
Elevate Your Audio Experience to New Heights
The ORION HCCA1200.2 HCCA Series 1200W RMS 2-Channel Class-AB Amplifier is a testament to precision engineering and audio excellence. Designed for enthusiasts who demand exceptional performance, this amplifier is a powerful addition to your audio setup, delivering clarity, power, and unrivaled sonic depth.
Elevate Your Audio Journey:
The ORION HCCA1200.2 HCCA Series 1200W RMS 2-Channel Class-AB Amplifier is your gateway to elevating your audio journey. Crafted with meticulous attention to detail and advanced features, this amplifier adds a dynamic dimension to your listening experience.
Exceptional Sound Reproduction:
Rediscover your music with stunning clarity. From the delicate nuances to the most powerful crescendos, every aspect of your audio comes to life in unparalleled detail.
Unparalleled Performance:
Experience the harmonious blend of power and precision. The ORION HCCA1200.2 HCCA Series Amplifier seamlessly combines robust power with sonic accuracy, creating an auditory masterpiece that resonates deeply.
Elevate Your Drive:
Immerse yourself in the world of audio excellence with the ORION HCCA1200.2 HCCA Series 1200W RMS 2-Channel Class-AB Amplifier. Redefine your driving soundtrack, and elevate your listening pleasure with a performance that stands above the rest.
Class-AB Amplification - Experience the synergy of Class-AB amplification, combining the efficiency of Class B and the sound quality of Class A for a balanced audio experience.
1200 Watts RMS - Immerse yourself in a world of high-quality audio with 1200 Watts RMS, delivering powerful and precise sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring longevity.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 400W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 600W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 1200W
POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
- Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 125A recommended (not included)
- Dimensions (L x W x H): 15" x 11.89" x 3.15" (381x302x80mm)
