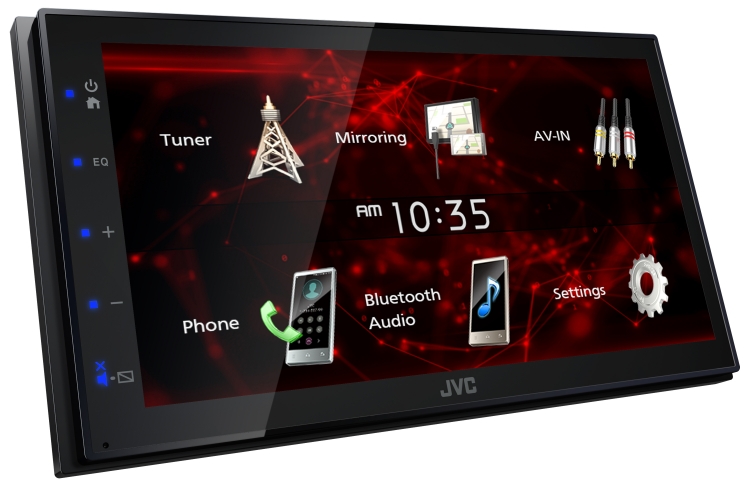

Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor / USB Mirroring for Android™ / Bluetooth / 13-Band EQ / Short Chassis
SKU: JV-KW-M180BT
Brand part number: KW-M180BT
Brand: JVC Mobile


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Smartphone Integration

    USB Mirroring for Android™

    Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.

    How to USE

    Step-1 : Simply download the free Mirroring for JVC app.

    Step-2 : Connect your smartphone via Bluetooth and USB.

    Mirroring OB for JVC App
    For more information, visit here.

    Bluetooth® Wireless Technology

    Bluetooth Voice Recognition

    Improved Sound Quality with HFP 1.6 Wideband Speech

    Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

    Bluetooth AVRCP1.5 for Versatile Song Selection

    In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

    Sound Optimization

    Time Alignment

    By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

    13-Band Equalizer

    Use the 13-Band Equalizer to manually adjust the sound to your taste.

    General

    Fast Bootup

    Thanks to the new fast bootup feature, the Receiver is ready to use shortly after powering on.

    Capacitive Touchscreen

    Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.

    Various Formats Compatible

    Supports a variety of file formats for audio and video playback.

    Short Chassis

    The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

    Rear View Camera Ready

    The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
    Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

    • Waterproof design
    • 1/4" color CMOS sensor with effective 380,000 pixels
    • Flexible mounting bracket included
    • Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
    • Weight: 21g (Camera only)

    Steering Wheel Remote Control Ready

    Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

    Remote Control (Optional)

    Remote control (RM-RK258) is optionally available.

    KW-M180BT

    Monitor
    Screen Size
    6.8"Wide VGA
    Touch Panel
    Capacitive
    Key Illumination Color
    Blue
    Dimmer
    Yes
    Multilingual Display
    Yes[2]
    Media Playback
    MP3 Compatible with Tag
    USB
    WMA Compatible with Tag
    USB
    WAV Compatible with Tag
    USB
    AAC Compatible with Tag
    USB
    FLAC Compatible with Tag
    USB
    H.264 Compatible
    USB
    MPEG 1/2 Compatible
    USB
    MPEG 4 Compatible
    USB
    MKV Compatible
    USB
    Bluetooth Control
    Built-in Bluetooth[1]
    Yes (Wired-Mic included)
    Hands Free Call
    Yes (HFP1.6 Wideband Speech)
    Audio Streaming & Control (A2DP, AVRCP)
    Yes
    Supported Audio Formats
    AAC / SBC
    Voice Dialing (voice recognition compatible mobile phone required)
    Yes
    Phone Book Access Profile (PBAP)
    Yes
    Android Control
    Mirroring for Android
    Yes (via USB)
    Android Music Playback
    Yes (via Bluetooth(R))
    iPod/iPhone Control
    iPhone Music Playback
    Yes (via USB or Bluetooth(R))
    USB
    USB Port
    x 1 (High speed)
    Position
    Rear
    USB Power Supply
    Yes (1.5A)
    Radio Tuner
    Radio Broadcast Data System (RBDS)
    Yes
    Preset Stations
    30 (6ch x 5band)
    Auto Memory Entry
    Yes
    FM
    Frequency Range
    87.9-107.9MHz
    AM
    Frequency Range
    530-1,700kHz
    Audio
    Maximum Power Output (Front & Rear)
    45W x 4
    EQ
    Yes (13-Band Graphic EQ)
    Preset EQ
    Yes (7Preset + 3user)
    Bass Boost
    Yes
    High-Pass Filter/Low-Pass Filter
    Yes/Yes
    Time Alignment
    Yes
    Inputs and Outputs
    AV Input
    RCA x 1
    Video Out
    RCA x 1
    Rear view camera Input
    Yes
    Line Output Terminals
    3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
    Pre-output Level/Impedance
    2V / 10k ohms
    Subwoofer Output with Level/Frequency Control
    Yes
    General
    Face Type
    Fixed
    Short Chassis
    Yes (75mm)
    Wireless Remote Control
    Ready (RM-RK258 required)
    Steering Remote Control Ready
    Yes
    ISO Connector
    Yes
    [1]Available functions depend on mobile phone.
    [2]Multilingual (English / Spanish / French)

    Smartphone Integration

    USB Mirroring for Android™

    Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.

    How to USE

    Step-1 : Simply download the free Mirroring for JVC app.

    Step-2 : Connect your smartphone via Bluetooth and USB.

    Mirroring OB for JVC App
    For more information, visit here.

    Bluetooth® Wireless Technology

    Bluetooth Voice Recognition

    Improved Sound Quality with HFP 1.6 Wideband Speech

    Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

    Bluetooth AVRCP1.5 for Versatile Song Selection

    In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

    Sound Optimization

    Time Alignment

    By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

    13-Band Equalizer

    Use the 13-Band Equalizer to manually adjust the sound to your taste.

    General

    Fast Bootup

    Thanks to the new fast bootup feature, the Receiver is ready to use shortly after powering on.

    Capacitive Touchscreen

    Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.

    Various Formats Compatible

    Supports a variety of file formats for audio and video playback.

    Short Chassis

    The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

    Rear View Camera Ready

    The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
    Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

    • Waterproof design
    • 1/4" color CMOS sensor with effective 380,000 pixels
    • Flexible mounting bracket included
    • Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
    • Weight: 21g (Camera only)

    Steering Wheel Remote Control Ready

    Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

    Remote Control (Optional)

    Remote control (RM-RK258) is optionally available.

    KW-M180BT

    Monitor
    Screen Size
    6.8"Wide VGA
    Touch Panel
    Capacitive
    Key Illumination Color
    Blue
    Dimmer
    Yes
    Multilingual Display
    Yes[2]
    Media Playback
    MP3 Compatible with Tag
    USB
    WMA Compatible with Tag
    USB
    WAV Compatible with Tag
    USB
    AAC Compatible with Tag
    USB
    FLAC Compatible with Tag
    USB
    H.264 Compatible
    USB
    MPEG 1/2 Compatible
    USB
    MPEG 4 Compatible
    USB
    MKV Compatible
    USB
    Bluetooth Control
    Built-in Bluetooth[1]
    Yes (Wired-Mic included)
    Hands Free Call
    Yes (HFP1.6 Wideband Speech)
    Audio Streaming & Control (A2DP, AVRCP)
    Yes
    Supported Audio Formats
    AAC / SBC
    Voice Dialing (voice recognition compatible mobile phone required)
    Yes
    Phone Book Access Profile (PBAP)
    Yes
    Android Control
    Mirroring for Android
    Yes (via USB)
    Android Music Playback
    Yes (via Bluetooth(R))
    iPod/iPhone Control
    iPhone Music Playback
    Yes (via USB or Bluetooth(R))
    USB
    USB Port
    x 1 (High speed)
    Position
    Rear
    USB Power Supply
    Yes (1.5A)
    Radio Tuner
    Radio Broadcast Data System (RBDS)
    Yes
    Preset Stations
    30 (6ch x 5band)
    Auto Memory Entry
    Yes
    FM
    Frequency Range
    87.9-107.9MHz
    AM
    Frequency Range
    530-1,700kHz
    Audio
    Maximum Power Output (Front & Rear)
    45W x 4
    EQ
    Yes (13-Band Graphic EQ)
    Preset EQ
    Yes (7Preset + 3user)
    Bass Boost
    Yes
    High-Pass Filter/Low-Pass Filter
    Yes/Yes
    Time Alignment
    Yes
    Inputs and Outputs
    AV Input
    RCA x 1
    Video Out
    RCA x 1
    Rear view camera Input
    Yes
    Line Output Terminals
    3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
    Pre-output Level/Impedance
    2V / 10k ohms
    Subwoofer Output with Level/Frequency Control
    Yes
    General
    Face Type
    Fixed
    Short Chassis
    Yes (75mm)
    Wireless Remote Control
    Ready (RM-RK258 required)
    Steering Remote Control Ready
    Yes
    ISO Connector
    Yes
    [1]Available functions depend on mobile phone.
    [2]Multilingual (English / Spanish / French)
    Products specifications
    Master Pack4
    Unit of MeasureEACH
    Warranty2 YEAR DLR
    FF Level100
    Products specifications
    Master Pack4
    Unit of MeasureEACH
    Warranty2 YEAR DLR
    FF Level100
