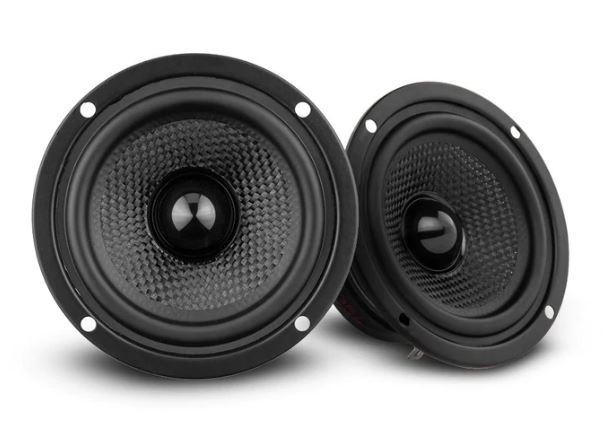

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI- 354 is 3.5" , 4 ohms coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 1 - way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Highlights
- The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
- 3.5" 1- way 4 ohms speaker requiring 40w RMS and 120w Max power handling that gives amazing sound from low to extremely high volume.
- 1 -Way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
Nominal Diameter 3.5”
Nominal Impedance 4 ohms
RMS Power Handling 40W
MAX Power Handling 120W
Sensitivity (1w/1m) 86dB
Frequency Response 120Hz-20KHz
Recommended HI Pass Crossover 140Hz
Midrange:
Voice Coil Diameter 1” / 25.5mm
Voice Coil Former Material KSV
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material. Barium Ferrite
Magnet Weight 10.9 oz / 310g
Thiele & Small Parameters
Equivalent Volume 0.55L
Excursion (one way) 1.4mm
Free Air Resonance 140Hz
Mechanical Factor 7.08
Electrical Factor 1.37
Total Factor 1.15
Mechanical Mass 3.2g
Mechanical Compliance 402mm/N
BL Factor 2.938
Cone Area 32cm2
DC Resistance 4.2 ohm
Mechanical Mass w/o air 3.0g
Measurements
Overall Diameter 3.50” / 89mm
Overall Depth 1.65” / 42mm
Front Mount Baffle Cutout 2.80” / 71mm
Mouting Depth 1.49” / 37.8mm
Motor Diameter 2.36” / 60mm
