DD-PRO-HY10.4B

Previous productDD-PRO-H44/BK
Next productDD-PRO-HY64B
Picture of DD-PRO-HY10.4B Picture of DD-PRO-HY10.4B Picture of DD-PRO-HY10.4B

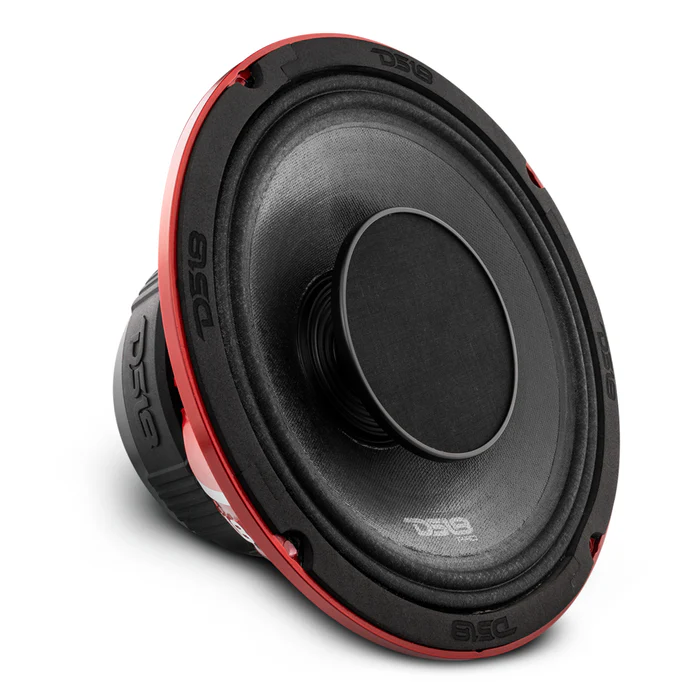

PRO 10" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 350 Watts Rms 4-Ohm
SKU: DD-PRO-HY10.4B
Brand part number: PRO-HY10.4B
Brand: DS18
Be the first to review this product


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    The PRO-HY10.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 10" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.
    The PRO-HY10.4B features a 1.5" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound.
    With a maximum power handling of 700 watts and a sensitivity of 100 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.
    The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY10.4B also has a nominal impedance of 4 ohms, a frequency response range of 40Hz-20KHz, and a recommended hi-pass crossover of 70Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.
    The PRO-HY10.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.

    Key Features

    • 10" Hybrid Coaxial Mid-Range w/Driver
    • RMS Power: 350 Watts(700 Watts Peak)
    • Impedance: 4 Ohm
    • Ferrite & Neodymium Magnets
    • Water Resistant IPX5
    • 100dB ~ w/Grill

    • Technical Data - Manual

      SPECS

      SKU
      PRO-HY10.4B
      Nominal Diameter
      10" / 254mm
      Nominal Impedance
      4 Ohm
      RMS Power Handling
      350W
      MAX Power Handling
      700W
      Sensitivity (1w/1m)
      100dB
      Frequency Response
      40Hz - 20KHz
      Recommended HI Pass Crossover
      70Hz
      Number of ways
      2 ways
      Pair or Single
      Single
      Grill Included
      Yes



      Woofer Specifications

      Voice Coil Diameter
      2" / 50.8mm
      Voice Coil Former Material
      Glass Fiber
      Winding Material
      CCAW
      Cone Material
      Water Resistant Paper (IPx5)
      Surround Material
      Cloth
      Basket Material
      Aluminum
      Basket Color/Finish
      Matte Black
      Magnet Material
      Ferrite
      Magnet Weight
      49 Oz
      Displacement Volume
      2.86L / 0.1ft3



      Thiele & Small Parameters

      Equivalent Volume Vas
      21.8L / 0.76ft3
      Excursion (one way) Xmax
      10mm
      Free Air Resonance Fs
      95Hz
      Mechanical Factor Qms
      12.59
      Electrical Factor Qes
      0.995
      Total Factor Qts
      0.922
      Mechanical Mass Mms
      26.78g
      Mechanical Compliance Cms
      0.125 mm/N
      BL Factor BL
      6.851
      Voice Coil Inductance Le
      0.313mH
      Cone Area Sd
      352.99 Cm2
      DC Resistance Re
      3.4 ohms
      Mechanical Mass w/o air Mmd
      25g



      Driver Specifications

      Voice Coil Diameter
      1.5" / 38.6mm
      Voice Coil Former Material
      Kapton
      Winding Material
      CCAW
      Diaphragm Material
      Titanium
      Magnet Material
      Neodymium
      Horn Diameter
      4.25" / 108mm



      Speaker Measurement

      Overall Diameter
      10.3" / 261.5mm
      Overall Depth
      5.7" / 144.4mm
      Front Mount Baffle Cutout
      9" / 231mm
      Mounting Depth
      5.31" / 135mm
      Motor Diameter
      5.7" / 145mm

    The PRO-HY10.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 10" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.
    The PRO-HY10.4B features a 1.5" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound.
    With a maximum power handling of 700 watts and a sensitivity of 100 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.
    The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY10.4B also has a nominal impedance of 4 ohms, a frequency response range of 40Hz-20KHz, and a recommended hi-pass crossover of 70Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.
    The PRO-HY10.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.

    Key Features

    • 10" Hybrid Coaxial Mid-Range w/Driver
    • RMS Power: 350 Watts(700 Watts Peak)
    • Impedance: 4 Ohm
    • Ferrite & Neodymium Magnets
    • Water Resistant IPX5
    • 100dB ~ w/Grill

    • Technical Data - Manual

      SPECS

      SKU
      PRO-HY10.4B
      Nominal Diameter
      10" / 254mm
      Nominal Impedance
      4 Ohm
      RMS Power Handling
      350W
      MAX Power Handling
      700W
      Sensitivity (1w/1m)
      100dB
      Frequency Response
      40Hz - 20KHz
      Recommended HI Pass Crossover
      70Hz
      Number of ways
      2 ways
      Pair or Single
      Single
      Grill Included
      Yes



      Woofer Specifications

      Voice Coil Diameter
      2" / 50.8mm
      Voice Coil Former Material
      Glass Fiber
      Winding Material
      CCAW
      Cone Material
      Water Resistant Paper (IPx5)
      Surround Material
      Cloth
      Basket Material
      Aluminum
      Basket Color/Finish
      Matte Black
      Magnet Material
      Ferrite
      Magnet Weight
      49 Oz
      Displacement Volume
      2.86L / 0.1ft3



      Thiele & Small Parameters

      Equivalent Volume Vas
      21.8L / 0.76ft3
      Excursion (one way) Xmax
      10mm
      Free Air Resonance Fs
      95Hz
      Mechanical Factor Qms
      12.59
      Electrical Factor Qes
      0.995
      Total Factor Qts
      0.922
      Mechanical Mass Mms
      26.78g
      Mechanical Compliance Cms
      0.125 mm/N
      BL Factor BL
      6.851
      Voice Coil Inductance Le
      0.313mH
      Cone Area Sd
      352.99 Cm2
      DC Resistance Re
      3.4 ohms
      Mechanical Mass w/o air Mmd
      25g



      Driver Specifications

      Voice Coil Diameter
      1.5" / 38.6mm
      Voice Coil Former Material
      Kapton
      Winding Material
      CCAW
      Diaphragm Material
      Titanium
      Magnet Material
      Neodymium
      Horn Diameter
      4.25" / 108mm



      Speaker Measurement

      Overall Diameter
      10.3" / 261.5mm
      Overall Depth
      5.7" / 144.4mm
      Front Mount Baffle Cutout
      9" / 231mm
      Mounting Depth
      5.31" / 135mm
      Motor Diameter
      5.7" / 145mm
