NXL 6-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 6 x 150 Watts Rms @ 4-Ohm
SKU: DD-NXL-X9006D
Brand part number: NXL-X9006D
Brand: DS18


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

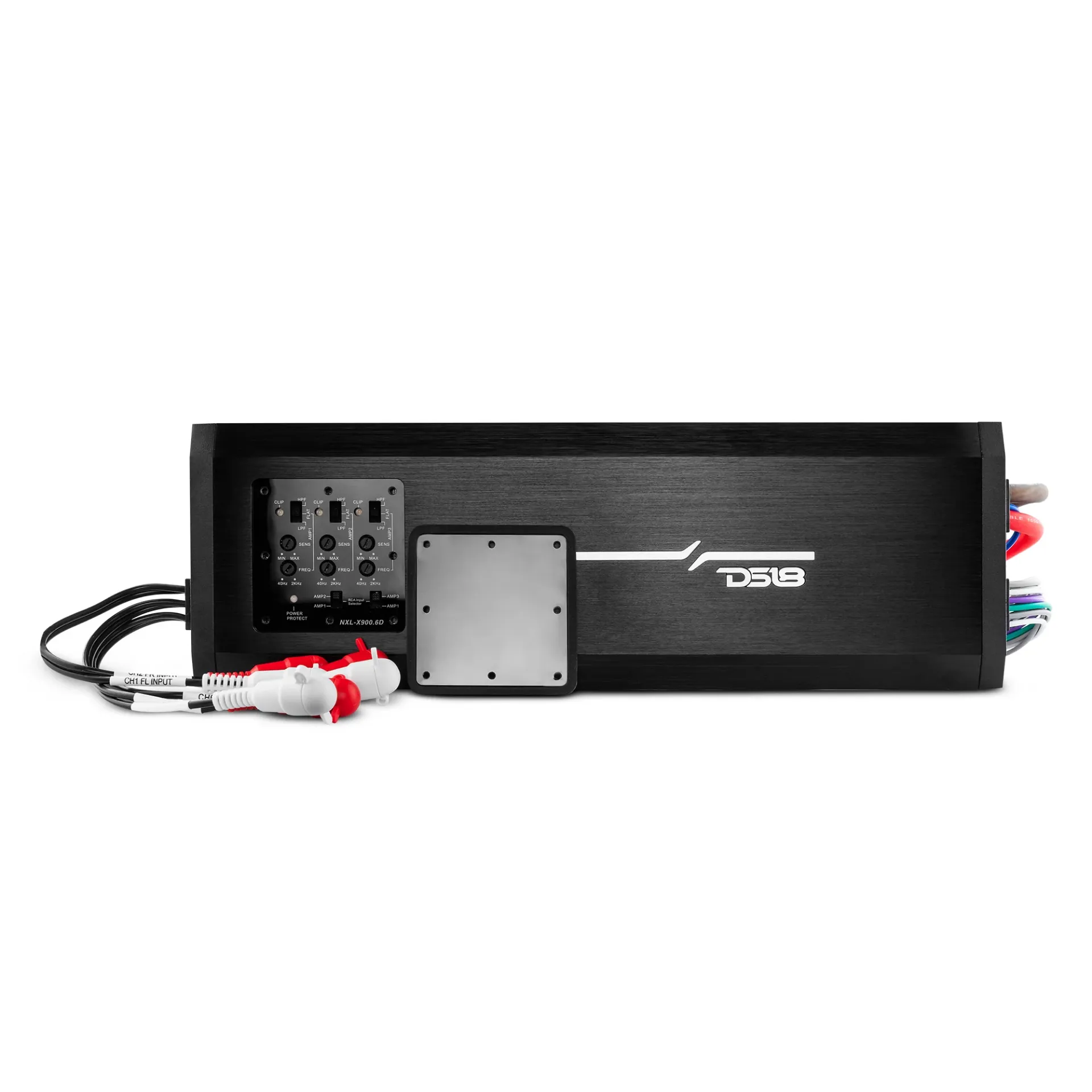

    DS18 NXL-X900.6D

    6-Channel Marine Waterproof Amplifier  Class D Full-Range 150 x 6 @ 4 Ohm RMS

    DS18’s NXL-X900.6D is a compact and powerful solution designed for marine enthusiasts seeking to elevate their sound experience.
    The NXL-X900.6D is not just about power, but also efficiency and durability. Its robust construction ensures it can withstand harsh conditions, making it the go-to choice for those in need of a waterproof amplifier that can handle any challenge.
    With its 6-channel configuration, the NXL-X900.6D is perfect for powering complex active setups, allowing you to create an immersive audio environment that will impress even the most discerning ears.
    Tuning your speaker choice has never been easier, thanks to the high pass and low pass filters included in the NXL-X900.6D. Achieve crystal clarity at any volume level, from soft background tunes to blasting beats that will make your heart race.
    DS18 takes pride in the quality of their products, and the NXL series is no exception. Featuring stable and reliable 4-layer PCB layouts and undergoing audio precision quality control verification, you can trust that this amplifier delivers superior performance every time.
    With an IP67 waterproof rating and protection against UV, salt, and fog, this amplifier is ready to take on any adventure.
    The NXL-X900.6D comes equipped with a marine-grade fuse and fuse holder, providing ultimate protection against the elements. Its direct power harness design with marine-grade OFC tinned wires ensures optimal performance even in challenging conditions.
    Experience the latest digital amplifier design with SMC technology, delivering maximum output of 500W x 3CH at 1-Ohms, 150W x 6CH at 4-Ohms, and 250W x 6CH at 2-Ohms, the NXL-X900.6D is the perfect companion for your marine or DIY audio projects.

    Key Features

    • Marine Full Range
    • 6 Channel
    • 6 X 150 Watts @ 4 Ohm
    • Built in Crossover
    • Class D
    • Water Resistant IP67

    Technical Data - Manual

    DOWNLOAD THE USER MANUAL



    GENERAL SPECIFICATIONS

    SKU
    NXL-X900.6D
    Total Watts (Peak)
    3000W
    RMS Power @ 4 ohm
    6 x 150W
    RMS Power @ 2 ohm
    6 x 250W
    RMS Power @ 4 ohm Bridge
    3 x 500W



    AUDIO

    Frequency Response
    10Hz-250Hz
    Signal to Noise Ratio 1W @ 4Ω
    > 84dB
    Efficiency @ 4 ohm
    87%
    Input Impedance
    20K OHM
    Channel Separation
    60dB
    Total Harmonic Distortion (THD)
    < 0.03%
    Low Level Input Range
    200mV-5V
    Selectable X-Over
    (HPF/Full/LPF)
    X-Over Filter Range
    40Hz-2KHz



    FEATURES 1

    Amplifier Class
    Digital
    Amplifier Type
    Stereo Full Range
    Number of Channels
    6
    Minimum Impedance
    2 Ohms (Stereo) / 4 Ohms (Bridge)
    Led Indicator



    DS18 NXL-X900.6D

    6-Channel Marine Waterproof Amplifier  Class D Full-Range 150 x 6 @ 4 Ohm RMS

    DS18’s NXL-X900.6D is a compact and powerful solution designed for marine enthusiasts seeking to elevate their sound experience.
    The NXL-X900.6D is not just about power, but also efficiency and durability. Its robust construction ensures it can withstand harsh conditions, making it the go-to choice for those in need of a waterproof amplifier that can handle any challenge.
    With its 6-channel configuration, the NXL-X900.6D is perfect for powering complex active setups, allowing you to create an immersive audio environment that will impress even the most discerning ears.
    Tuning your speaker choice has never been easier, thanks to the high pass and low pass filters included in the NXL-X900.6D. Achieve crystal clarity at any volume level, from soft background tunes to blasting beats that will make your heart race.
    DS18 takes pride in the quality of their products, and the NXL series is no exception. Featuring stable and reliable 4-layer PCB layouts and undergoing audio precision quality control verification, you can trust that this amplifier delivers superior performance every time.
    With an IP67 waterproof rating and protection against UV, salt, and fog, this amplifier is ready to take on any adventure.
    The NXL-X900.6D comes equipped with a marine-grade fuse and fuse holder, providing ultimate protection against the elements. Its direct power harness design with marine-grade OFC tinned wires ensures optimal performance even in challenging conditions.
    Experience the latest digital amplifier design with SMC technology, delivering maximum output of 500W x 3CH at 1-Ohms, 150W x 6CH at 4-Ohms, and 250W x 6CH at 2-Ohms, the NXL-X900.6D is the perfect companion for your marine or DIY audio projects.

    Key Features

    • Marine Full Range
    • 6 Channel
    • 6 X 150 Watts @ 4 Ohm
    • Built in Crossover
    • Class D
    • Water Resistant IP67

    Technical Data - Manual

    DOWNLOAD THE USER MANUAL



    GENERAL SPECIFICATIONS

    SKU
    NXL-X900.6D
    Total Watts (Peak)
    3000W
    RMS Power @ 4 ohm
    6 x 150W
    RMS Power @ 2 ohm
    6 x 250W
    RMS Power @ 4 ohm Bridge
    3 x 500W



    AUDIO

    Frequency Response
    10Hz-250Hz
    Signal to Noise Ratio 1W @ 4Ω
    > 84dB
    Efficiency @ 4 ohm
    87%
    Input Impedance
    20K OHM
    Channel Separation
    60dB
    Total Harmonic Distortion (THD)
    < 0.03%
    Low Level Input Range
    200mV-5V
    Selectable X-Over
    (HPF/Full/LPF)
    X-Over Filter Range
    40Hz-2KHz



    FEATURES 1

    Amplifier Class
    Digital
    Amplifier Type
    Stereo Full Range
    Number of Channels
    6
    Minimum Impedance
    2 Ohms (Stereo) / 4 Ohms (Bridge)
    Led Indicator
