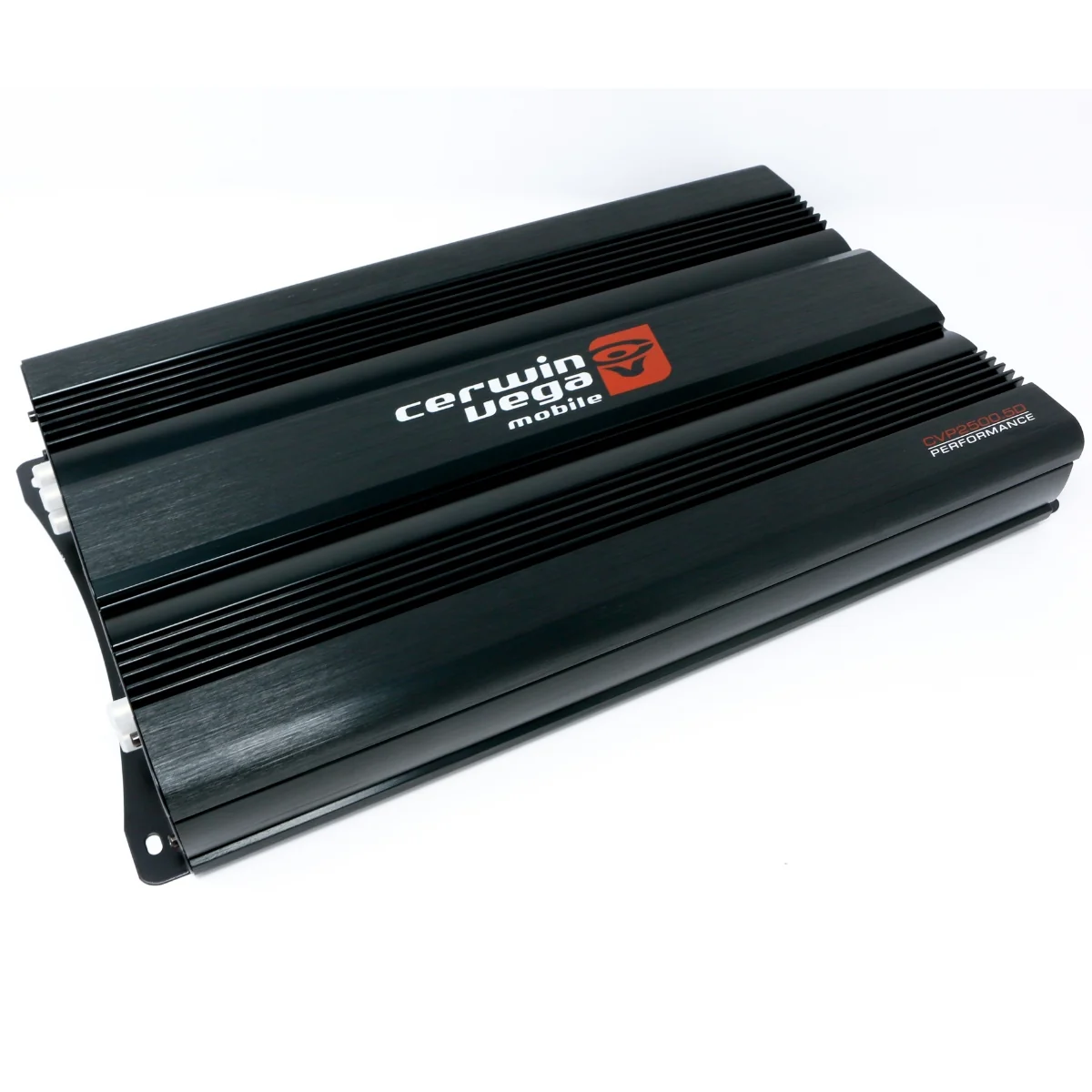

5 Channel CVP Amplifier 100w x 4 + 400w x 1 @ 4 ohm RMS

SKU: CW-CVP25005D

Brand part number: CVP25005D

Brand: Cerwin Vega

Be the first to review this product

Unit of Measure: EACH

DISCONTINUED DISCONTINUED ITEM

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

CVP Series Class A/B 2 ohms Stable 5-Channel Amplifier
RMS Power Rating:
4 ohms: 65 watts x 4 channel + 185 watts x 1 channel
2 ohms: 85 watts x 4 channel + 300 watts x 1 channel
Bridged: 180 watts x 2 channel @ 4 ohms + 300 watts x 1 channel @ 2 ohms
Total power output: 660 watts
LED Power/Protect Light
Wired bass level remote control included
Speaker-level (high-level) inputs
1 pair of pre-amp outputs
Signal sensing remote turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity:
Low level: 200mV - 6 volts
High level: 200mV - 6 volts
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >105 dB
Variable high-pass filter: 40 - 400 Hz
Variable low-pass filter: 40 - 400 Hz
Subsonic filter: 40 - 400 Hz
Variable Bass Boost: 0 - 12 dB
Fuse Rating: 80A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 14.97" L x 9.38" W x 2.25" H

Overview
Specifications

CVP Series Class A/B 2 ohms Stable 5-Channel Amplifier
RMS Power Rating:
4 ohms: 65 watts x 4 channel + 185 watts x 1 channel
2 ohms: 85 watts x 4 channel + 300 watts x 1 channel
Bridged: 180 watts x 2 channel @ 4 ohms + 300 watts x 1 channel @ 2 ohms
Total power output: 660 watts
LED Power/Protect Light
Wired bass level remote control included
Speaker-level (high-level) inputs
1 pair of pre-amp outputs
Signal sensing remote turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity:
Low level: 200mV - 6 volts
High level: 200mV - 6 volts
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >105 dB
Variable high-pass filter: 40 - 400 Hz
Variable low-pass filter: 40 - 400 Hz
Subsonic filter: 40 - 400 Hz
Variable Bass Boost: 0 - 12 dB
Fuse Rating: 80A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 14.97" L x 9.38" W x 2.25" H

Products specifications

Warranty	1 YEAR
Master Pack	3
FF Level	100

Products specifications

Warranty	1 YEAR
Master Pack	3
FF Level	100
