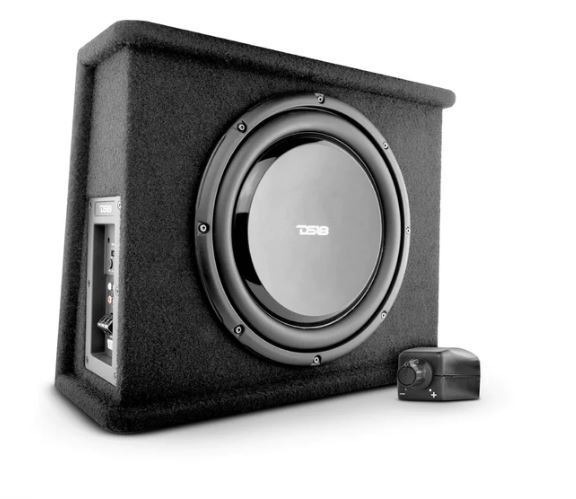

10" 700W Shallow Sub Enclosure w/ Built In Amplifier
SKU: DD-SB10A
Brand part number: SB10A
Brand: DS18


    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    BOX SPECIFICATIONS
    Internal Volume 12L / 0.42ft3
    Load Configuration Parallel In
    Box Type Sealed Box
    Box Material 0.59" MDF
    Finish Material Non-Woven fabric
    (-3bB) Dropping Point 48Hz
    MEASUREMENTS
    Height 13.6" / 345.4mm
    Width 16.7" / 424mm
    Depth 1 4.82" / 122.6mm
    Depth 2 7.9" / 201mm
    SPECIFICATIONS
    Speaker Size 10" / 261mm
    Total Impedance 2 ohms
    RMS Power Handling 350W
    MAX Power Handling 700W
    Sensitivity (1w/1m) 83dB
    Frequency Response 38Hz-250Hz
    MOTOR
    Voice Coil Diameter 1.5" / 38.6mm
    Voice Coil Former Material Aluminum
    Winding Material EISV
    Cone Material IPP
    Surround Material Rubber
    Basket Material SPCC
    Magnet Material Ferrite
    Magnet Weight 40 Oz
    AMPLIFIER
    Amplifier Class Digital
    Amplifier Type Monoblock Subwoofer
    Number of Channels 1 CH
    Minimum Impedance 2 ohms
    Signal to Noise Ratio 75 dB
    Efficiency @ 4 ohms 75%
    Total Harmonic Distortion (T.H.D) 0.30%
    Low Level Input Range 0.1-0.6 V
    High Level Input Range Yes
    Selectable X-Over RMS a 2 OHMS LPF Fixed
    X-Over Filter Range 50 - 200 Hz
    Bass Boost Range 0-6 dB
    Bass Boost Frequency 50 Hz
    Phase Selector 0-180°
    Led Indicator Power - Protection
    Power Input Terminal Size 8 GA
    Fuse Size 30 A
    Remote Level Control Yes
    Thermal Protection Yes (75°C / 167°F)
    Over-Load Protection Yes
    DC Output Protection Yes
    Short Circuit Output Protection Yes
    Voltage Input Protection Yes / Si (<8v,>16v)

    BOX SPECIFICATIONS
    Internal Volume 12L / 0.42ft3
    Load Configuration Parallel In
    Box Type Sealed Box
    Box Material 0.59" MDF
    Finish Material Non-Woven fabric
    (-3bB) Dropping Point 48Hz
    MEASUREMENTS
    Height 13.6" / 345.4mm
    Width 16.7" / 424mm
    Depth 1 4.82" / 122.6mm
    Depth 2 7.9" / 201mm
    SPECIFICATIONS
    Speaker Size 10" / 261mm
    Total Impedance 2 ohms
    RMS Power Handling 350W
    MAX Power Handling 700W
    Sensitivity (1w/1m) 83dB
    Frequency Response 38Hz-250Hz
    MOTOR
    Voice Coil Diameter 1.5" / 38.6mm
    Voice Coil Former Material Aluminum
    Winding Material EISV
    Cone Material IPP
    Surround Material Rubber
    Basket Material SPCC
    Magnet Material Ferrite
    Magnet Weight 40 Oz
    AMPLIFIER
    Amplifier Class Digital
    Amplifier Type Monoblock Subwoofer
    Number of Channels 1 CH
    Minimum Impedance 2 ohms
    Signal to Noise Ratio 75 dB
    Efficiency @ 4 ohms 75%
    Total Harmonic Distortion (T.H.D) 0.30%
    Low Level Input Range 0.1-0.6 V
    High Level Input Range Yes
    Selectable X-Over RMS a 2 OHMS LPF Fixed
    X-Over Filter Range 50 - 200 Hz
    Bass Boost Range 0-6 dB
    Bass Boost Frequency 50 Hz
    Phase Selector 0-180°
    Led Indicator Power - Protection
    Power Input Terminal Size 8 GA
    Fuse Size 30 A
    Remote Level Control Yes
    Thermal Protection Yes (75°C / 167°F)
    Over-Load Protection Yes
    DC Output Protection Yes
    Short Circuit Output Protection Yes
    Voltage Input Protection Yes / Si (<8v,>16v)

    Products specifications
    Warranty1 YEAR
    Master Pack1
    FF Level750
    Products specifications
    Warranty1 YEAR
    Master Pack1
    FF Level750
